Learning to read architectural drawings is like learning a new language—one that translates your vision for a home into a buildable reality. At first, it’s all lines and symbols. But once you crack the code, you gain the power to shape your project from the ground up.

It all starts with recognizing the four core drawing types you’ll find in every set of plans: site plans, floor plans, elevations, and sections. Mastering these is your first step to making sure the home you’ve imagined is the home that gets built.

Your First Look at Architectural Drawings

When a thick set of architectural drawings lands on your desk, it can feel like you’ve been handed a secret code. The pages are dense with lines, numbers, and strange abbreviations. But don’t be intimidated.

Think of these plans not as a complex puzzle, but as the single most important communication tool for your project. They are the official instruction manual that guides everyone from us, your architect, to the general contractor and every trade professional in between. They ensure your vision is built exactly as planned.

For any custom home or major renovation, these documents are the bedrock of a successful outcome. They go far beyond pretty sketches to become a precise, legally binding record of what will be built. This is especially true for the high-performance and net-zero homes we specialize in, where the drawings capture crucial details—like air-sealing strategies or passive solar orientation—that are invisible in the finished building but absolutely essential to its comfort and efficiency.

Why Understanding Your Plans Matters

As a homeowner, getting comfortable with this visual language is incredibly empowering. It shifts you from being a passenger to being an active, informed collaborator in the design of your own home.

When you can confidently read a set of plans, you can ask smarter questions, spot potential issues early, and make decisions that truly align with your lifestyle and budget.

This knowledge transforms your role. Instead of just nodding along, you can:

• Truly visualize the space. You’ll get a real feel for the scale of a room, the flow between spaces, and how your family will live in them long before a single wall goes up.
• Confirm the details that matter to you. You can check that the kitchen layout actually works for your cooking style or that window placements are perfect for capturing morning light.
• Track your sustainability goals. You can see exactly where high-performance insulation is specified or how the roof is being prepared for a future solar array.

In our work as a Chicago architect focused on sustainable architecture techniques, we’ve found that clients who dig into the drawings with us during the schematic design phase are always the happiest with the final home. They feel a deep sense of ownership because they helped shape every detail, ensuring the house isn't just built correctly, but built right for them.

To get you started, let’s introduce the fundamental drawing types you’ll see in every set of plans. Grasping what each one shows is the first step toward reading them like a pro.

The Four Core Drawing Types at a Glance

Every set of architectural plans is built around four primary views. Each one tells a different part of the story, and together, they provide a complete picture of the project. Here's a quick reference to help you get your bearings.

Understanding how these four views work together is the foundation of reading any set of architectural drawings. Once you can identify which type of plan you're looking at, you can start to decode the specific information it contains.

Decoding Plans From Property Lines to Room Layouts

Now that you're familiar with the four main drawing types, let's zoom in on the two you’ll reference most often: the site plan and the floor plan. Both give you a top-down view, but they operate on completely different scales.

Think of it this way: the site plan is the big picture, a bird's-eye view of your entire property. The floor plan, on the other hand, is an intimate look inside, as if we sliced the roof off to reveal the layout. Understanding both is your first major step in mastering how to read architectural drawings.

Interpreting the Site Plan: The Big Picture

The site plan is essentially the Google Maps view of your project. It's the drawing that establishes your home's relationship with everything around it. This is where we make some of the most critical early decisions, especially for a sustainable home.

When you look at a site plan, you’re seeing your property from directly above. You can easily trace the property lines, which are the legal boundaries of your lot. You'll also see the proposed outline of your house—the building footprint—showing exactly where it will sit on the land.

Here are the key features to look for on a site plan:

• North Arrow: This is one of the most vital symbols on the page. It tells us the home's orientation, which is fundamental for passive solar design—harnessing the sun for warmth in the winter and blocking it in the summer.
• Setbacks and Easements: These lines show mandatory distances from property lines or areas where utility companies have right-of-way. They define your "buildable area."
• Topography and Grade: You'll see these as contour lines that show how the land slopes. This is crucial for planning the foundation, drainage, and landscaping.
• Existing and Proposed Features: The plan will map out driveways, walkways, trees, and often sustainable elements like a planned rain garden or the future location for a geothermal field.

As an architect located in Chicago, we obsess over the site plan. It’s our first chance to map out how the home will work with the sun, wind, and water. A well-oriented house is the first step toward a net-zero home.

Reading the Floor Plan: The Human Scale

If the site plan is the map, the floor plan is your guide to daily life within the home. It’s a horizontal slice taken about four feet above the ground, revealing the layout of rooms, walls, doors, and windows. This is the drawing that makes you feel the flow and function of your space.

Reading a floor plan means looking for a few key things that bring the 2D drawing to life. Rooms will be labeled ("Living Room," "Bedroom 1"), and dimension strings—lines with numbers—will tell you the exact size of each space.

A common mistake is getting fixated on room dimensions alone. The real test of a great floor plan is how it flows. Try to trace your daily routines. How do you get from the bedroom to the kitchen for coffee? From the garage to a mudroom with groceries? Does it feel natural?

When you’re learning how to read architectural drawings, this is where you’ll spend most of your time. You can visualize where furniture will go, check for good natural light, and make sure the space works for your family. Once you have a handle on the technicals, seeing how a Floor Plan Rendering can turn these lines and numbers into a photorealistic image will really boost your understanding.

Decoding Floor Plan Symbols and Details

Floor plans are dense with standardized symbols that pack a ton of information into a small space. It might look like a secret language at first, but it’s surprisingly easy to pick up.

You’ll quickly start to spot symbols for:

• Doors: A simple line with an arc. That arc is critical—it shows which way the door swings and helps you make sure you have enough clearance.
• Windows: Usually shown as breaks in a wall with thin parallel lines to represent the glass and frame.
• Stairs: A series of parallel lines with an arrow showing whether you're going up or down.
• Fixtures: You'll see outlines for kitchen sinks, bathroom toilets, showers, and other built-in features.

This is also where we call out key sustainable features inside the home. A floor plan might note the location of a whole-house fan to encourage cross-ventilation or specify certain high-performance window types to prevent heat loss. By understanding these symbols, you can be confident that the features you've discussed are making it into the final design, ensuring your home performs as beautifully as it looks.

Understanding Elevations and Sections: The Vertical View

Floor plans are fantastic for mapping out the flow of your home, but they only tell half the story. To get a real sense of your home’s three-dimensional character and performance, you need to look at the elevations and sections. These drawings show you the vertical side of the design.

Think of it this way: elevations show the face of your home, what it looks like from the street. Sections, on the other hand, are like cutting a slice right through the building to see how all the pieces fit together inside. They are the bridge between a flat, 2D layout and a real-world 3D structure.

Reading Elevations for Curb Appeal and Character

An elevation drawing shows you exactly what your home will look like from the outside, as if you were standing right in front of it. A complete set of drawings will have at least four exterior elevations, usually labeled North, South, East, and West. These are less about nitty-gritty dimensions and more about style, materials, and overall feel.

When you're looking at elevations, you’re visualizing your home's final aesthetic—this is where its personality really comes through.

Here’s what you should be looking for on an elevation drawing:

• Material Callouts: You’ll see text with arrows pointing to different parts of the façade, identifying all the exterior finishes—brick, siding, stone veneer, stucco, and more.
• Window and Door Styles: Elevations spell out the specific look of your windows (like casement or double-hung), their trim details, and the design of your exterior doors.
• Roof Pitch and Form: This is where you see the slope of the roof, where gables or dormers are placed, and the details of any overhangs.
• Vertical Heights: Key vertical measurements are often noted, like the height from the ground to the peak of the roof or to the top of the windows.

For us at Hutter Architects, elevations are also a critical tool for sustainable design. The size, placement, and shading of windows on each elevation have a direct impact on the home's energy performance.

On a Chicago-area home, for instance, we pay incredibly close attention to the south-facing elevation. We might spec larger windows to capture low winter sun for passive heating, but we’ll pair them with correctly sized overhangs to block the high summer sun. This simple move cuts down on cooling costs, and seeing it on the elevation confirms the strategy is in place.

Reviewing elevations is about more than just looks; it's about confirming the house will function smartly. Does the window placement match your vision for natural light? Are the materials right for both your aesthetic and your long-term maintenance goals?

Slicing Open the Building with Section Drawings

If elevations show you the skin, sections reveal the bones and organs of your home. A section drawing is a vertical cut through the building, exposing the relationships between different floors, the construction of the walls and roof, and other critical structural details.

These drawings are packed with information, though they can look a little intimidating at first. You can find the "cut line" for a section on the floor plan—it looks like a bold line with arrows showing which part of the building is being cut and the direction you're looking.

A building section is where you can truly appreciate the volume of a space. It’s how you see floor-to-ceiling heights, how a staircase navigates between levels, or the soaring feeling of a vaulted ceiling.

Why Sections Are Critical for Net-Zero Homes

For a standard home, sections are important. For a high-performance or net-zero home, they are absolutely essential. This is the drawing where we specify the nitty-gritty details that make the building perform at a high level.

Key details you'll find in a section drawing include:

• Foundation and Footing Details: Shows how the building connects to the ground.
• Wall and Roof Assemblies: Details the layers of a wall—from the siding and sheathing to the insulation and interior drywall.
• Floor-to-Ceiling Heights: Gives you the actual vertical height inside each room.
• Structural Elements: Identifies the beams, joists, and trusses that hold everything up.

As architects focused on sustainable architecture techniques, the section drawing is where we detail the building envelope—the all-important thermal and air barrier that separates the conditioned inside from the outside. You can literally see the specified thickness of insulation in the walls and roof, which is crucial for energy efficiency.

We also use sections to map out the continuous airtightness layer, a critical component for stopping drafts and energy loss in a net-zero home.

Think of the section as a construction roadmap. It tells the builder exactly how to assemble the high-performance systems we’ve designed. For a homeowner, reviewing this drawing is your chance to ask questions like, "Can you show me the insulation thickness here?" or "How does this window detail prevent air leaks?" Understanding these vertical views empowers you to ensure both the beauty and the performance of your home are built exactly as you envisioned.

Mastering the Details: Scales, Symbols, and Schedules

While plans and elevations give you the big-picture view, the true substance of any architectural drawing is found in the details. Those tiny symbols, cryptic abbreviations, and dense tables are where a project's quality, function, and character are truly defined. This is where we move from broad ideas to specific, buildable instructions.

Learning to read these details—the scales, symbols, and schedules—is how you really master a set of blueprints. This knowledge lets you verify every single decision, from the placement of a light switch to the energy-efficiency of a window, making sure the final build is exactly what you envisioned.

Grasping Architectural Scale

By necessity, architectural drawings are a scaled-down version of your future home. The scale is simply the fixed ratio that tells you how measurements on the page translate to their real-world size. You’ll usually spot the scale for each drawing noted in the title block.

For residential projects, you’ll frequently see these scales:

• ¼” = 1’-0”: A go-to for floor plans and elevations. Every quarter-inch on paper represents one foot in reality.
• ⅛” = 1’-0”: Used for bigger overviews like site plans, where more area needs to fit on the page.
• 1 ½” = 1’-0”: Reserved for highly detailed drawings, like a complex wall section or custom cabinetry, where precision is everything.

A great trick is to use the scale bar, which is a graphical ruler printed right on the drawing. You can use a standard tape measure against it to quickly understand the size of a room or piece of furniture without needing a specialized architectural ruler.

Understanding scale is your first line of defense against costly surprises. When you can accurately read the size of a room, you know for sure that your cherished king-size bed will actually fit, or that your kitchen island allows for a comfortable workflow.

This is precisely why detailed documentation is so critical. In 2026, design and documentation services are projected to make up 40.92% of revenue in the architectural market because regulators demand sealed drawings and exact specifications before a single nail is hammered.

For homeowners, especially in cities like Chicago, getting this right can save up to 20-30% in rework costs, as a simple misinterpretation can quickly become an expensive change order. You can dive deeper into this trend and its market impact in this detailed architectural services market report.

Decoding the Language of Symbols

To keep drawings clean and uncluttered, architects use a standard library of symbols to represent everything from electrical outlets to different kinds of doors. Think of it as a universal shorthand. It might look like a foreign language at first, but you'll quickly get the hang of the common ones.

The table below shows some of the most common symbols you'll run into on a set of residential plans.

Common Architectural Symbols and Their Meanings

For example, an electrical plan uses distinct symbols for standard outlets, GFCI outlets (for kitchens and baths), single-pole and three-way switches, ceiling lights, and wall sconces. By representing these items with symbols, the drawings stay readable and ensure the builder installs exactly what was specified, where it was specified.

Using Schedules to Organize Information

If you see a window on the floor plan marked "W01" or a door tagged "D03," you might wonder what that means. These tags are your key to unlocking the schedules—highly organized tables that spell out the specifications for every single tagged item in the plan.

Instead of cramming the drawing with endless notes, all the nitty-gritty details are compiled in one easy-to-read location. A door and window schedule, for instance, lists every door and window and provides columns for:

• Tag: The unique identifier you see on the plan (e.g., W01, D01).
• Size: The exact width, height, and rough opening required.
• Type: The style, like "Casement," "Double-Hung," or "Solid Core Flush."
• Material: What it's made of, such as "Wood," "Clad," or "Fiberglass."
• Notes: Any special information, like hardware finish or glazing specs. For our net-zero homes, this is where we specify critical performance data like U-factor and Solar Heat Gain Coefficient (SHGC).

This system is what connects the visual plan to the technical specifications. You find the D03 tag on the plan, look up D03 in the schedule, and immediately see every last detail about that specific door. Our detailed construction documents are filled with these connections, making every aspect of the project transparent and clear.

Once you’re comfortable reading these details manually, you might find that specialized construction estimating software can help streamline the process even further.

By learning to cross-reference symbols on the plans with their matching schedules, you gain an incredible amount of control over your project. You’re no longer just looking at lines on a page; you’re reading the instruction manual for your future home.

Your Pre-Meeting Checklist: Questions to Ask Your Architect

Alright, so you've got the hang of reading architectural drawings. This is a huge step. You're no longer just looking at lines on a page; you're an active collaborator in your own project. Your design and permit meetings are where this new skill really shines, turning them from presentations into productive work sessions.

The key is to move beyond "Does it look nice?" and dig into how the home will actually function, perform, and feel. Coming to the table with smart, specific questions helps you and your architect spot potential issues long before they become expensive problems on-site. This is your most powerful tool for getting the project right.

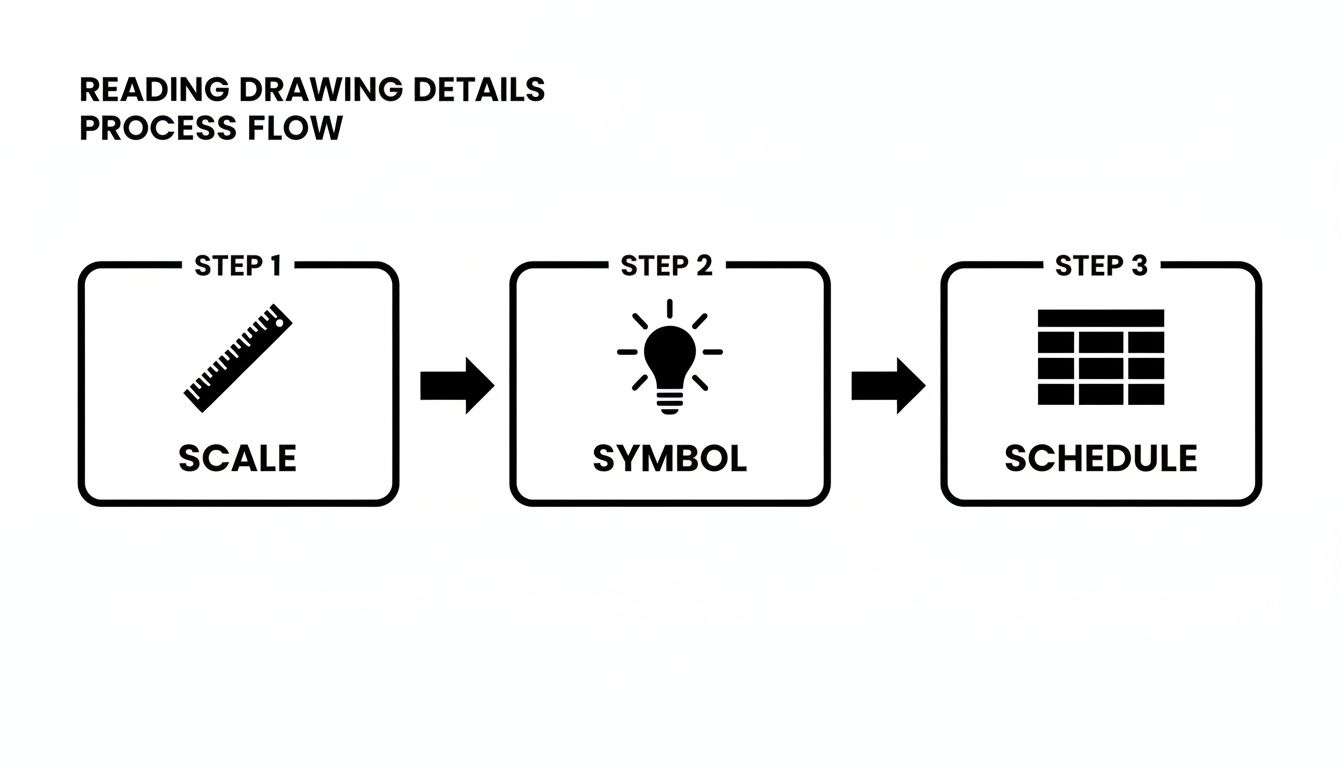

Here’s a quick mental framework for breaking down any drawing you’re looking at.

Think of it as a loop: check the scale to understand the context, decode the symbols to see what's there, and then cross-reference the schedules to get the specifics. It's the go-to method for making sense of every detail.

Questions About Overall Design and Function

Before you zoom in on the technical details, step back and look at the big picture. These questions connect the drawings to your daily life and how you'll experience the space.

• “Can you walk me through the main circulation paths?” Ask your architect to trace the common routes you'll take every day—from the car to the kitchen with groceries, or from the bedrooms to the living room in the morning. Does it flow naturally, or are there awkward corners and choke points?
• “How did you plan for furniture in this layout?” A room can feel massive when it’s empty on paper. This question forces a practical check. You want to be sure your sectional sofa won't block a doorway or that the dining room can actually fit a table for eight.
• “Where will the natural light come from throughout the day?” This is about more than just windows. It’s about the quality of life in your home. Will the kitchen catch the morning sun? Will the living room be a dark cave in the afternoon? This is a fundamental part of creating a pleasant, energy-efficient home.

Questions Focused on Sustainability and Performance

For a high-performance or net-zero home, the drawings are the playbook. As architects who live and breathe sustainable architecture techniques, these are the questions we love to hear. They signal a client who is truly engaged with the core mission of the project.

Asking sharp, performance-based questions is the hallmark of an empowered client. It confirms you're not just buying a design; you're co-creating a home that works smarter, feels better, and reflects your values. It’s a conversation we love having.

Here are a few targeted questions to bring to your meeting:

1. “How does the window placement on the west-facing walls impact our summer cooling load?” This shows you're thinking about passive solar design. It opens up a crucial conversation about shading, high-performance window coatings (SHGC), and summertime comfort.
2. “Can you point out the insulation detail in this wall section?” Have them show you the specified R-value and, just as importantly, the continuous air barrier. This is how you verify the building envelope is robust enough to hit your energy targets.
3. “Where is the mechanical system located relative to the bedrooms?” An efficient HVAC system is great, but a quiet one is even better. Checking its location on the plans can save you from future noise headaches.
4. “Show me where the plans prepare for future solar panels or an EV charger.” If you plan to add these later, the structural support and electrical rough-ins need to be in the drawings now to avoid costly retrofits.

Questions About Budget and Buildability

Finally, it’s essential to connect the design back to the real-world constraints of cost and construction. A beautiful plan is only useful if it can be built on time and on budget. Openly discussing these topics is a sign of a healthy client-architect partnership. In fact, understanding how to choose the right residential architect often comes down to finding someone who is transparent about these practicalities.

• “Are there any materials or details here that are known for being expensive or having long lead times?”
• “How will a builder approach this detail? Is it straightforward or overly complex?”
• “What are the top three most difficult parts of this design to get right during construction?”

By arming yourself with a list of targeted questions, you transform a simple review meeting into a powerful, collaborative work session. You become a true partner in making sure the drawings are a perfect blueprint for the home you’ve envisioned.

Common Questions About Reading Architectural Plans

Even after you get a handle on the basic drawing types, it's completely normal to have a few lingering questions. Architectural plans are dense documents, and looking at them for the first time can feel like learning a new language.

We get it. Over the years, we've heard some great questions from our clients. Here are the answers to some of the most common points of confusion to help you feel more confident reviewing your project.

What’s the Most Important Thing to Check First?

While every part of a plan has its purpose, your first stop should always be the North arrow. It’s a small detail with a massive impact, dictating the home's orientation to the sun—the very foundation of any good sustainable design.

For instance, here in a Chicago climate, a home's orientation has a direct and significant effect on its energy needs. We want to maximize sun exposure in the cold winter months and minimize it during the hot summer. The North arrow is your first clue that these passive design strategies are baked into the plan from the start.

Another crucial first check is the overall dimensions on the floor plan. Before you get lost in the details, just get a feel for the scale of the building and the rooms. Do the sizes feel right and match what you remember discussing?

Why Do Some Lines Look Different From Others?

This is a great question. Architects use a system called lineweight to create a visual hierarchy and pack more information into a drawing without making it a cluttered mess. Essentially, thicker lines are "closer" or more important.

Think of it like this:

• Thick, Dark Lines: These are the most important elements, typically walls or objects that have been "cut" through in a plan or section.
• Medium Lines: These show objects you can see but aren't cut through. Think of the edges of countertops, built-in furniture, or the frame of a window in an elevation view.
• Thin, Light Lines: These are for the finer points, like material patterns (brick or tile) or the dimension strings themselves. They add context without stealing the show.
• Dashed or Dotted Lines: These almost always represent something hidden from view. That could be a beam in the ceiling above, the outline of the roof, or a foundation footing buried underground.

Once you get the hang of this visual language, you can instantly tell the difference between a load-bearing structural wall and a simple decorative detail.

How Can I Tell If My Furniture Will Fit?

This is probably one of the most practical—and important—questions homeowners ask. The absolute best way to check is to use the drawing’s scale. If your floor plan is at a scale of ¼” = 1’-0”, you can measure your real furniture and make little paper cutouts.

For example, a 6-foot-long sofa would become a 1.5-inch-long paper rectangle on your ¼” scale plan (6 feet x ¼ inch/foot = 1.5 inches). You can physically move these cutouts around on the drawing to test different layouts and see how they affect the flow of traffic.

This simple, hands-on exercise is far more reliable than just eyeballing it. It’s a great way to prevent that awful move-in day surprise when you discover your beloved dining table completely blocks the path to the kitchen.

What If I See Something That Looks Wrong?

If you spot something that doesn't feel right or contradicts what you remember from a design meeting, do not hesitate to mark it up and ask about it. A red pen and a question mark are your best friends during any plan review.

The key is to be specific. Instead of saying, "This room seems off," try something like, "I thought we decided to move this doorway six inches to the left to create space for that bookcase. Can we double-check that?"

Clear communication is everything. At Hutter Architects, we see these questions as a critical part of a successful collaboration. Catching a small discrepancy on paper costs nothing. Fixing that same issue once construction has started can lead to costly change orders and frustrating delays. Your questions are an essential quality control check that helps ensure the final building is a true reflection of your vision.
